Enterprise Architecture Frameworks

Overview

Let's explore four common enterprise architecture frameworks: TOGAF, Zachman Framework, MODAF, and SAFe. Each framework has its distinct use cases, structure, and target audience, making them suitable for different types of projects and organizational needs.

1. TOGAF (The Open Group Architecture Framework)

TOGAF is an enterprise architecture framework that provides a detailed approach for designing, planning, implementing, and governing enterprise information architecture. It helps organizations align their IT goals with their overall business objectives. TOGAF consists of a structured method called the Architecture Development Method (ADM), which is used to create an enterprise-wide architecture.

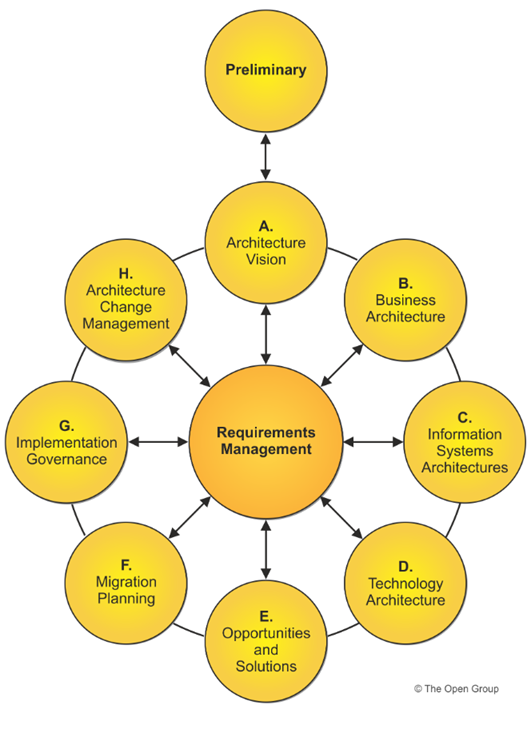

TOGAF works through a well-defined process called the Architecture Development Method (ADM), which is iterative and consists of several phases. These phases include:

1. Preliminary Phase: Establish the architecture framework and define the principles to guide the architecture work.
2. Architecture Vision: Develop a high-level view of the intended architecture to align stakeholders and ensure buy-in.
3. Business Architecture: Define the business strategy, governance, organization, and key business processes.
4. Information Systems Architectures: Develop both the Data Architecture and the Application Architecture to support the business processes.
5. Technology Architecture: Define the technology infrastructure needed to support the proposed architecture.
6. Opportunities and Solutions: Identify potential solutions and transition plans to achieve the target architecture.
7. Migration Planning: Create a detailed roadmap that shows how to move from the current state to the target architecture.
8. Implementation Governance: Oversee the implementation to ensure alignment with the architectural vision.
9. Architecture Change Management: Establish procedures for managing changes to the architecture as business needs evolve.

Each of these phases helps organizations systematically create, maintain, and govern their enterprise architecture, ensuring it supports both current and future business needs.

For more information, visit The Open Group.

2. Zachman Framework

The Zachman Framework is a structured approach for organizing and understanding an enterprise’s architecture through a matrix of viewpoints. It categorizes the different artifacts of an enterprise architecture into rows and columns to ensure that all critical perspectives (such as business, system, and technology) are captured. The framework is often used as a taxonomy for managing enterprise architecture.

The Zachman Framework is structured as a matrix with six columns and six rows, representing different aspects of an enterprise from multiple perspectives:

• Columns: The different interrogatives represented are:
  • What (data)
  • How (function)
  • Where (network)
  • Who (people)
  • When (time)
  • Why (motivation)

These columns help define the different aspects of the enterprise that need to be captured.

The rows represent different stakeholder perspectives:

• Rows: The different stakeholder perspectives represented are:
  • Scope (Planner)
  • Enterprise Model (Owner)
  • System Model (Designer)
  • Technology Model (Builder)
  • Detailed Representations (Subcontractor)
  • Functioning Enterprise (User)

Each row provides a view that is essential for a comprehensive understanding of the architecture, ranging from a high-level business overview to detailed implementation details.

By using this combination of columns and rows, the Zachman Framework ensures that all critical elements of an enterprise are covered, from strategic goals to technical implementation. This structured approach facilitates better communication between stakeholders and helps ensure that every aspect of the enterprise is aligned with business goals.

For more information, visit Zachman International.

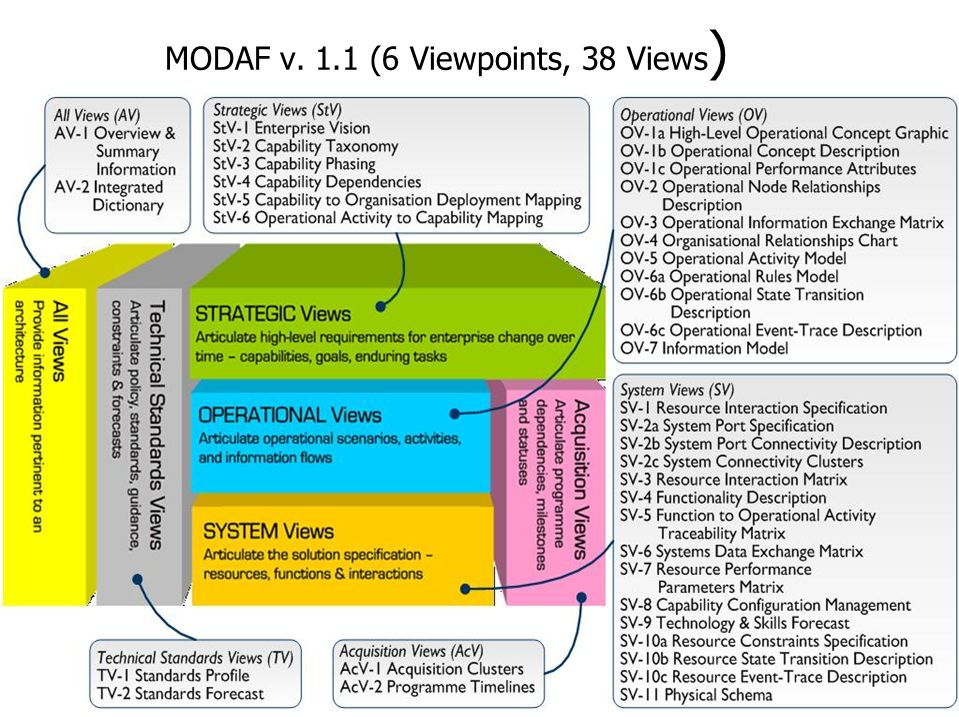

3. MODAF (Ministry of Defence Architecture Framework)

MODAF is an enterprise architecture framework used by the UK Ministry of Defence to model, document, and understand complex defense systems and processes. It provides a way to visualize the relationships between systems, capabilities, and organizational processes. MODAF focuses on ensuring that all stakeholders, particularly in the defense domain, have a clear view of the systems and their interactions.

Comparison with TOGAF and Zachman

MODAF, TOGAF, and the Zachman Framework each provide distinct approaches to enterprise architecture. MODAF is specifically tailored for defense systems, focusing on capabilities, systems, and the relationships between them. It is particularly suited for military and government use, where high levels of detail, security, and interoperability are crucial.

In contrast, TOGAF is more generic and applicable across different industries. It focuses on aligning IT with business strategy using a structured methodology known as the Architecture Development Method (ADM). TOGAF is iterative and modular, which makes it adaptable for a wide range of enterprises beyond the defense sector.

The Zachman Framework, on the other hand, offers a comprehensive taxonomy by organizing enterprise artifacts into a matrix of rows and columns. It ensures that all critical elements are covered from multiple stakeholder perspectives. Unlike MODAF, which is domain-specific, Zachman is not prescriptive about implementation and is suitable for capturing enterprise complexity in a highly detailed manner, but without providing specific methodologies for execution.

For more information, visit UK Ministry of Defence.

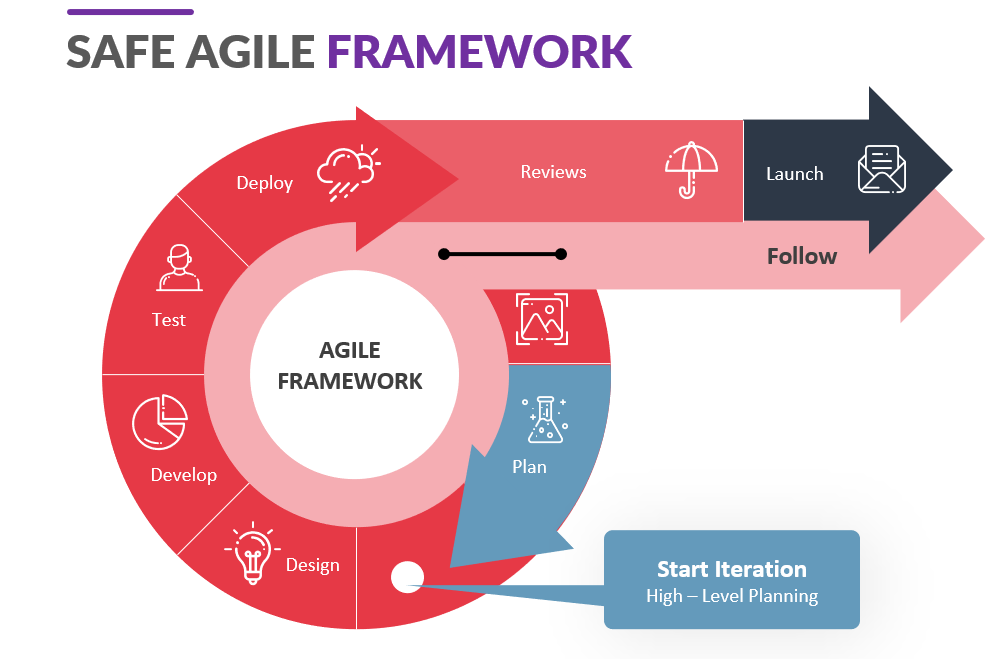

4. SAFe (Scaled Agile Framework)

SAFe is a framework designed to help organizations scale agile practices across large enterprises and multiple teams. It integrates lean and agile principles to provide guidance on roles, responsibilities, and best practices for managing large-scale projects. SAFe emphasizes the alignment of teams toward a shared goal, effective collaboration, and regular delivery of value. It also provides a set of tools and techniques that help organizations manage complex product development while ensuring a consistent and high-quality output.

Benefits of SAFe

Scalable Agile Practices: SAFe enables the effective scaling of agile principles across multiple teams and departments within a large organization.

Alignment with Business Objectives: SAFe ensures that all teams work toward common business goals, improving the overall strategic alignment of the organization.

Continuous Improvement: SAFe integrates lean and agile principles to foster a culture of continuous improvement, leading to better performance over time.

Enhanced Collaboration: The framework provides structured roles and responsibilities to facilitate collaboration across teams and departments.

Regular Value Delivery: Through iterative development, SAFe ensures frequent and consistent delivery of value to stakeholders, which improves customer satisfaction.

For more information, visit Scaled Agile Framework.

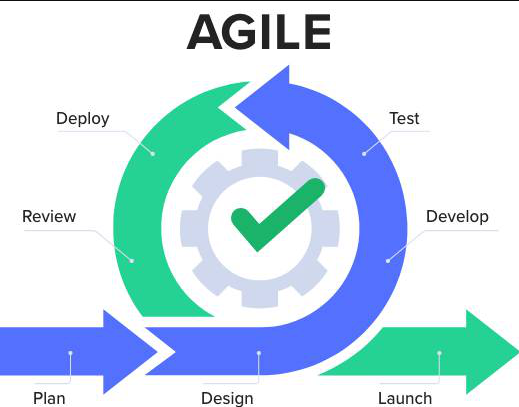

5. Agile Framework

The Agile Framework is a flexible methodology that emphasizes iterative development, collaboration, and continuous feedback. Agile focuses on delivering small, functional increments of software, allowing for rapid adaptation to changes in customer requirements. Agile is well-suited for projects where requirements are expected to evolve, and it encourages cross-functional teams to work closely together.

Comparison with SAFe

While both Agile and SAFe promote iterative development and collaboration, they serve different organizational scopes. Agile is typically used by smaller teams working independently, allowing for flexibility and quick adjustments. In contrast, SAFe is designed to scale agile principles across large enterprises involving multiple teams. SAFe includes structured roles, responsibilities, and coordination mechanisms to ensure alignment across the entire organization, making it effective for managing complex projects with numerous interdependencies.

SAFe is a framework designed to help organizations scale agile practices across large enterprises and multiple teams. It integrates lean and agile principles to provide guidance on roles, responsibilities, and best practices for managing large-scale projects. SAFe emphasizes the alignment of teams toward a shared goal, effective collaboration, and regular delivery of value.







For more information, visit Agile Alliance.

Comparison of Architectures

Below is a table comparing the features of TOGAF, Zachman Framework, MODAF, and SAFe:

Feature	TOGAF	Zachman Framework	MODAF	SAFe
Purpose	Enterprise architecture planning	Taxonomy for enterprise architecture	Defense systems modeling	Scaling agile practices
Scope	Business, data, application, technology	Business, system, technology views	Systems, capabilities, processes	Teams, programs, portfolios
Structure	Architecture Development Method (ADM)	Matrix of viewpoints (rows & columns)	Layered views (e.g., capability, system)	Levels: Team, Program, Portfolio
Target Audience	Enterprise architects, IT managers	Enterprise architects, stakeholders	Defense and government stakeholders	Agile teams, enterprise stakeholders
Level of Detail	High-level to detailed architectural design	Detailed categorization of components	High-level defense capability mapping	Operational and tactical agile practices
Technology Specificity	Technology-agnostic, adaptable to .NET	Technology-agnostic	Often government/defense-specific	Supports various technologies including .NET
Implementation with .NET	Suitable for modular applications, SOA, microservices	Useful for ensuring holistic system design	Suitable for secure, interoperable defense solutions	Ideal for iterative development using Azure DevOps

This comparison helps illustrate the unique features and use cases for each framework, highlighting their strengths and ideal applications across different industries and project requirements. TOGAF is well-suited for enterprises needing structured IT alignment, Zachman provides a holistic taxonomy for managing complex architectures, MODAF is optimal for defense-focused environments, SAFe supports scaling agile practices across large organizations, and the Agile Framework is ideal for small, adaptable teams.

By understanding these differences, organizations can make informed decisions on which framework best meets their specific architectural needs.
